Lotion Pump Principles Structure Types And Common Issues

1.Introduction

Lotion pumps are one of the most widely used dispensers with pump applications in the personal care, cosmetics, and household product industries. From shampoos and conditioners to liquid soaps and body lotions, these liquid pump dispensers provide a convenient, hygienic, and controlled way to dispense liquid products. Despite their simple appearance, lotion pumps operate based on a clever principle of atmospheric balance, ensuring smooth and consistent product delivery. Understanding how lotion pumps work, their structure, and common issues can help manufacturers and users optimize their performance and prevent product-related problems.

2. Basic Working Principle of Lotion Pumps

The operation of a lotion pump relies on the principle of atmospheric balance. When the user presses down on the pump head, pressure forces the piston and spring mechanism to move downward, drawing liquid up through the dip tube into the pump chamber. Once the pressure is released, the spring rebounds, creating suction that refills the chamber with liquid while allowing external air to enter the bottle to balance pressure. This cycle ensures continuous dispensing without collapsing the container. In this way, lotion pumps function as reliable pumps for lotion bottles and other liquid packaging.

3.Key Components of a Lotion Pump

A lotion pump consists of several key components, each playing an essential role in the dispensing mechanism:

Component	Function	Common Materials
Actuator (Pressing Head)	The top part that users press to dispense the liquid	Polypropylene (PP)
Closure (Bottle Cap)	Connects the pump to the bottle, sometimes ribbed for better grip	PP, ABS
Pump Housing	Holds the internal components, including the spring and piston	PP
Piston	Moves up and down to create pressure for dispensing	PP, Polyethylene (PE)
Spring	Pushes the piston back up after pressing	Stainless steel
Ball Valve	Controls the one-way liquid flow to prevent backflow	Glass, metal, plastic
Dip Tube	Extends into the bottle to draw the liquid	PE

4. Common Issues and Troubleshooting

4.1 High Number of Presses / No Liquid Output

If the pump requires many presses before liquid comes out, or fails to dispense altogether, possible causes include:

Dip tube too long or blocked.

Missing or damaged check valves.

Damaged piston sealing ring.

4.2 Difficulty in Rebounding After Pressing

When the pump is hard to reset after pressing, it may be caused by:

High liquid viscosity exceeding spring force.

Blocked lower check valve.

Improper channel design.

4.3 Leakage at the Bottle Mouth

Leakage often occurs due to:

Insufficient capping torque during filling.

Bottle mouth height being too short to properly seal with the gasket.

4.4 Bottle Collapse After Use

If the bottle body caves in after use, possible reasons are:

Air balance hole blocked by liquid.

Narrow bottle mouth diameter.

Mold wear during manufacturing leading to missing air holes.

5. Types of Lotion Dispenser Pumps

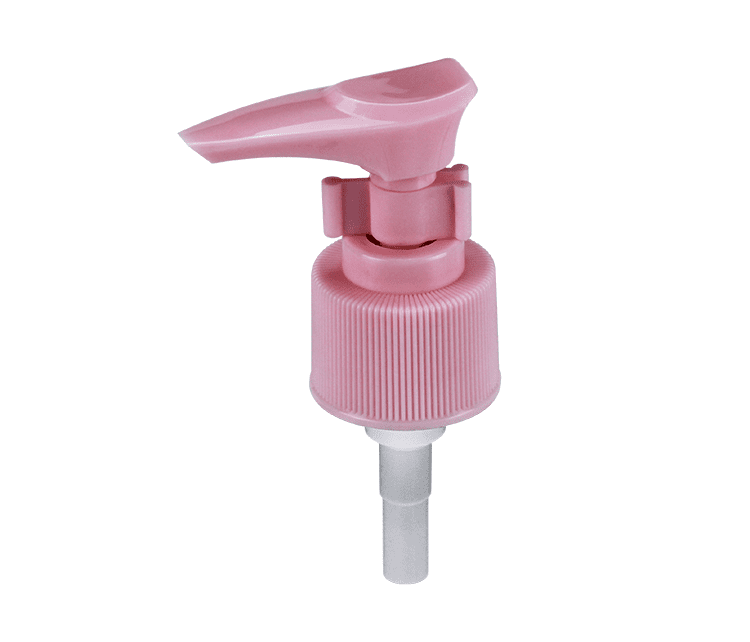

5.1 Clip-Lock Pump

The clip-lock pump features a detachable plastic clip placed around the pump neck. This design prevents accidental dispensing, making it child-safe and spill-proof. It is commonly used in lotions, personal care products, and household cleaners where safety and leakage prevention are priorities.

5.2 Screw Pump / Lock-down Pump

Also known as a lock-down or switch pump, this type uses a screw mechanism beneath the pump head. To unlock, the user twists the spout counterclockwise, then presses down to dispense. To lock, the head is pushed down and turned clockwise until secured. This pump type is widely used in shampoo and conditioner bottles, often marked with directional arrows to guide users.

5.3 Switch Pump / Lock-up Pump

The switch pump, or lock-up pump, is a simple and convenient dispenser. The nozzle can be twisted left or right to lock or unlock, often marked with embossed signs like “STOP” and “OPEN.” Unlike screw pumps, the lock-up mechanism does not require pushing the head down before twisting, making it faster and user-friendly. This type is widely seen in dispensing pumps cosmetics, providing both functionality and visual appeal.

6. Key Functional Considerations in Lotion Pumps

6.1 Pump Dose

Lotion pumps are designed to dispense between 0.5 ml and 3.0 ml per press. The exact dosage depends on:

Product type and cost.

Viscosity of the liquid.

Bottle size (e.g., 100 ml vs. 500 ml).

Expected usage frequency.

6.2 Tube Length and Diameter

The dip tube must be cut to fit the bottle depth and diameter correctly. If too long, it may bend or block; if too short, it will leave product unused. Additionally, thicker liquids require a wider tube diameter to ensure smooth flow. This customization ensures the efficiency of liquid pump dispensers across different packaging sizes.

7. Conclusion

Lotion pumps are essential dispensing tools, combining practicality, safety, and user convenience. By understanding their working principle, structure, and common problems, both manufacturers and end-users can ensure optimal performance. Choosing the right pump type—whether clip-lock, screw pump, or switch pump—and customizing the dosage and tube size according to the product ensures a better user experience and improved product quality.
